Home >Product Introduction>Type LZ Metal Pipe Float Flow Meter

Type LZ Metal Pipe Float Flow Meter (hereinafter refer to as flow meter) is based on variable area measuring principles, it is suitable for liquid, gas and steam flow measuring in enclosed pipelines. It is widely used for process measurement and control, especially in petrol, chemical, pharmaceutical, foodstuff and water treatment industries.
The flow meter is of metal structure; its type can be identified by functions like, on-site display type, electrically remote type, corrosion-proof type, high pressure type, thermal preserving type and explosion-proof type; output is 2-wire 4-20mA, 3-wire 0-10mA, 4-wire 4-20mA and 0-10mA standard current signal,it can also work with computer network for flow data remote display, record, regulation, calculation and control.

    Product Standard:Q/TDSM 18-2014
   Verification Regulation: JJG 257-2007 Verification Regulation of Float Meter

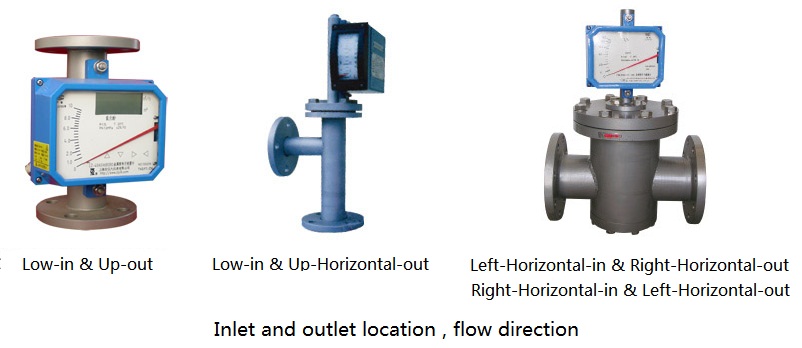

Product Show

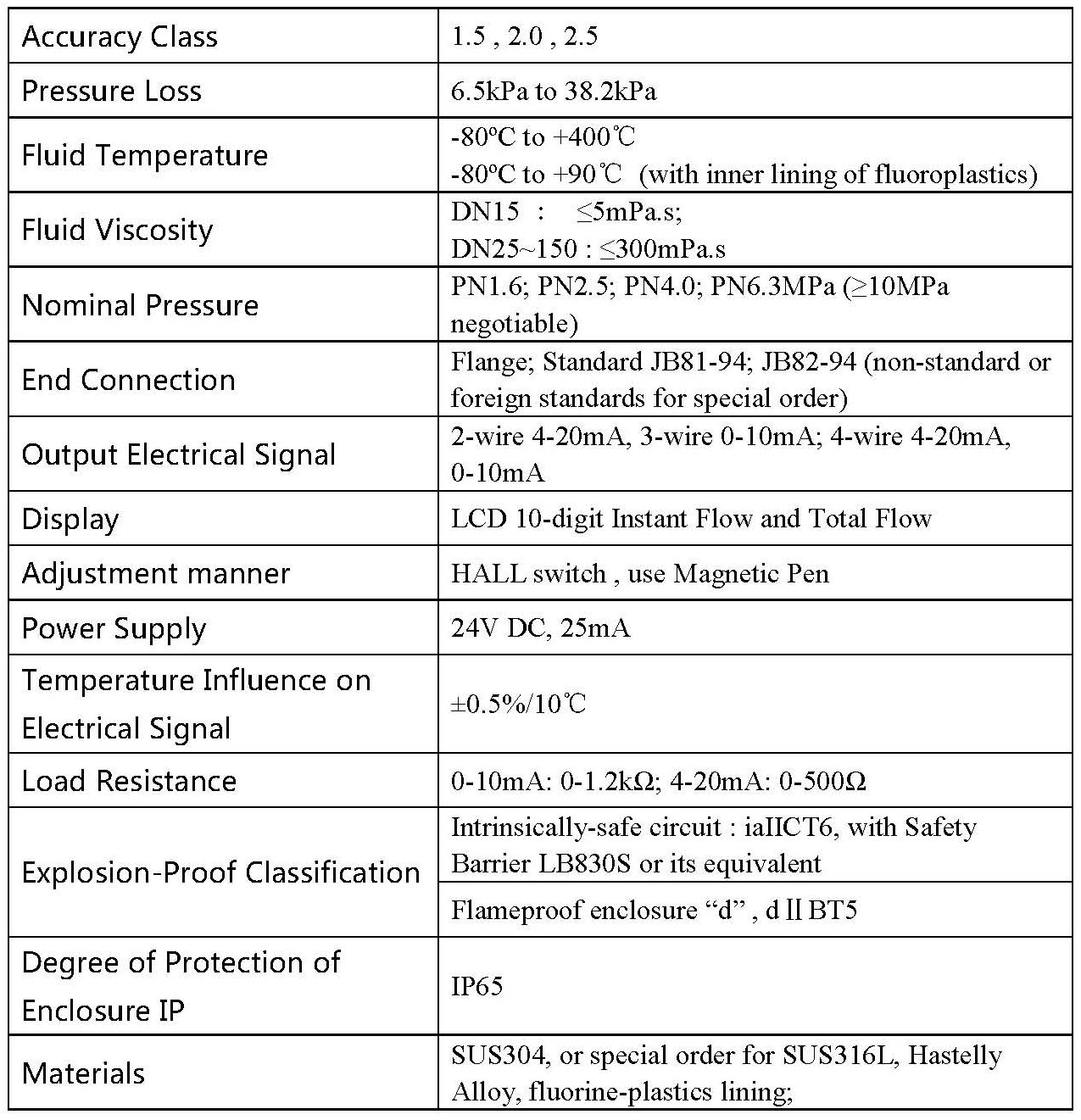

Main Technical Specifications

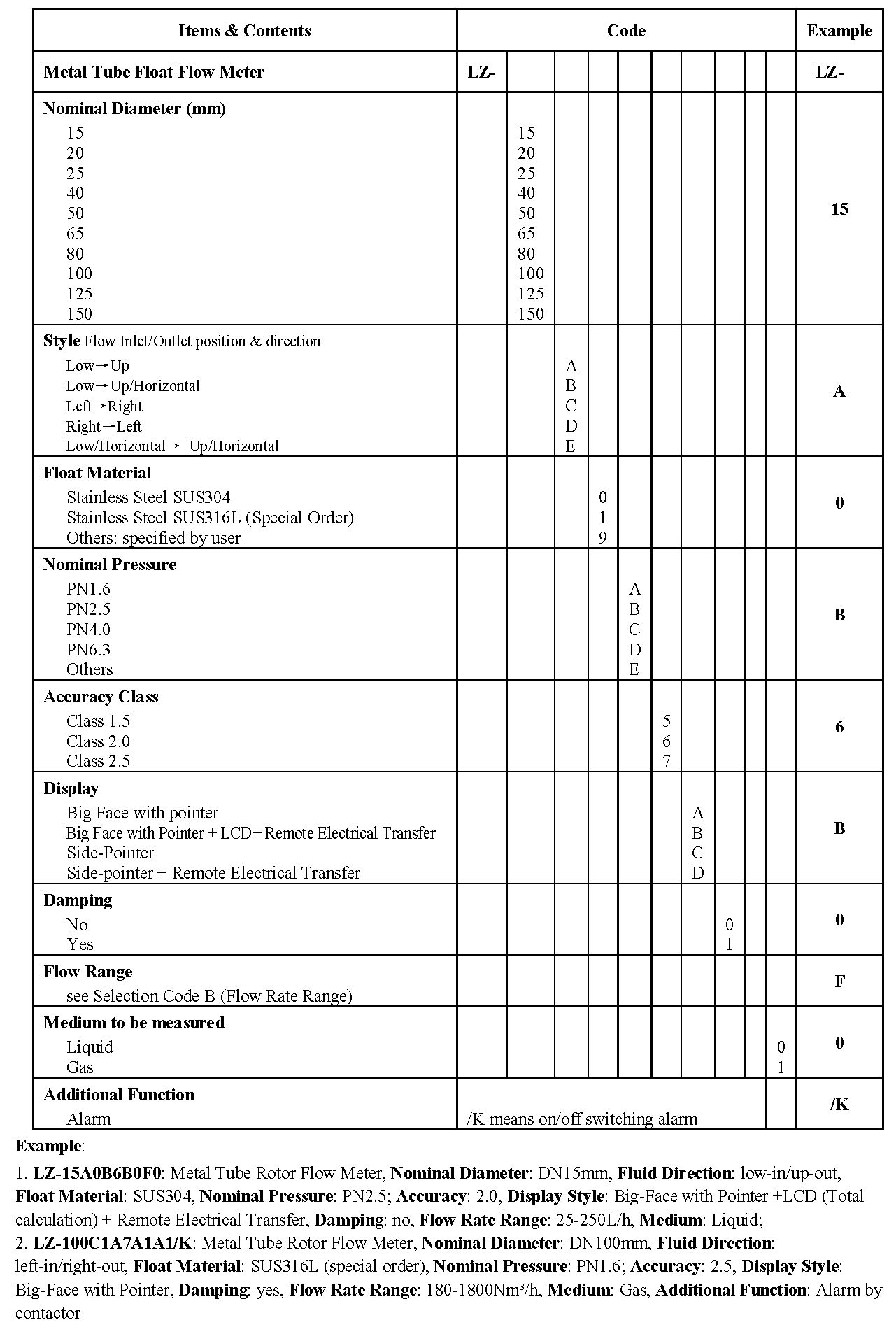

Type Selection Code A

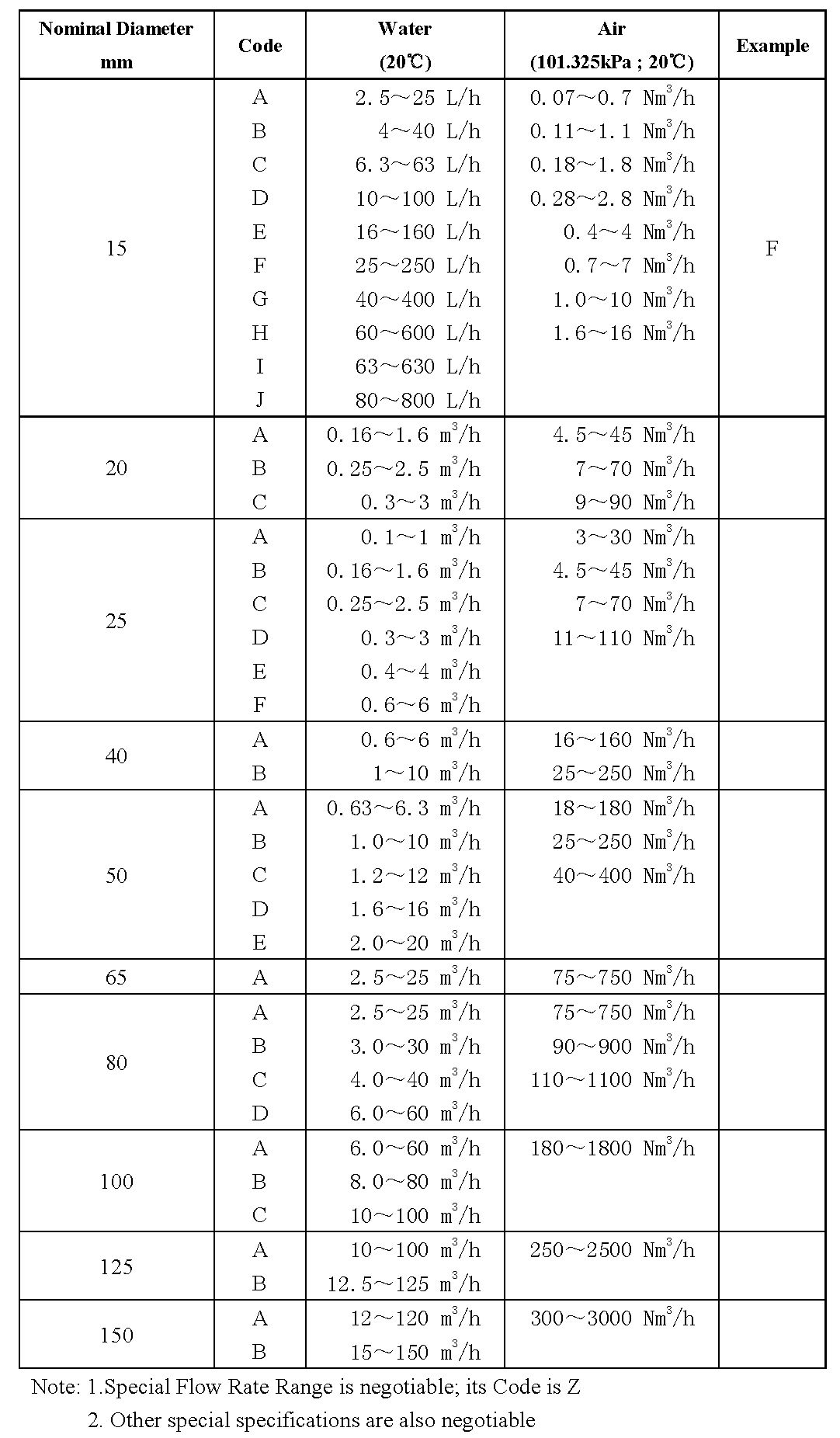

Type Selection Code BŁ¨Flow Range CodeŁ©

Dimensions & Installation Reference

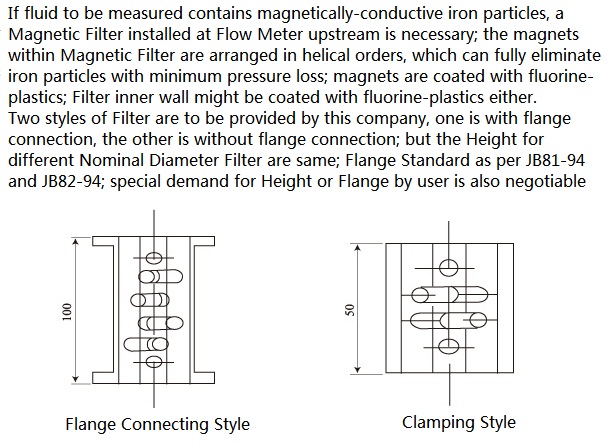

Magnetic Filter

Notice for Order

    The Type settled by using Selection Code Table is assumed in the Standard Status; for Flow Meter correct application purpose, Density, Viscosity under actual working conditions or Pressure, Temperature and Medium Name in actual working conditions should be provided by user with Order.
